Chair Parts -Back Uprights and Hardware for all office chairs

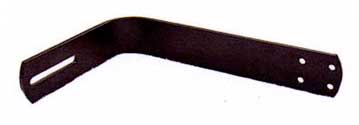

Back Upright / w auto hinge
2.75" wide 1/4" thick steel necked down to 2.25" where it inserts into the control 15" tall with 6.5" of length on the horizontal section
Ratchet mechanism allows for approximately 3" of vertical back adjustment. Price: $58.95

Qty :

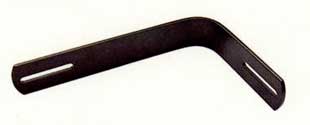

Back Upright
Width: 2.25"
Thickness: 2.25"
Adjustment: 3" horizontal slot
Hole Pattern: 1" w x 1.5" tall countersunk (100mm each)
Price: $29.95

Qty :

Universal J-Back
2.25" wide 1/4" thick spring steel
Allows for 3" of horizontal adjustment and 3" of vertical adjustment
Price: $39.95

Qty :

Universal Hinge Bracket
Spring Loaded
Connects the J-Back to the Chair Back
Price: $9.99

Qty :

Universal Hinge Bracket
Can be welded to back upright
Zinc plated inner piece
Unfinished outer piece
Includes inside spring
Price: $19.94

Qty :

Arm Pad Slider
60mm (2.36") stroke
3.98" mounting hole pattern
8.93" fully extended length
Price: $21.95

Qty :

Bushing
Convert 50mm bases to accept 45mm gas cylinders
Black Plastic
Price: $19.95

Qty :

Plastic Handle
50mm long
17mm wide
Accepts 8mm lever
MADE IN THE U.S.A.
Price: $5.95

Qty :

Plastic Handle
4-1/8" long
2-1/16" wide
Accepts 5/16" lever
MADE IN THE U.S.A.
Price: $5.95

Qty :
